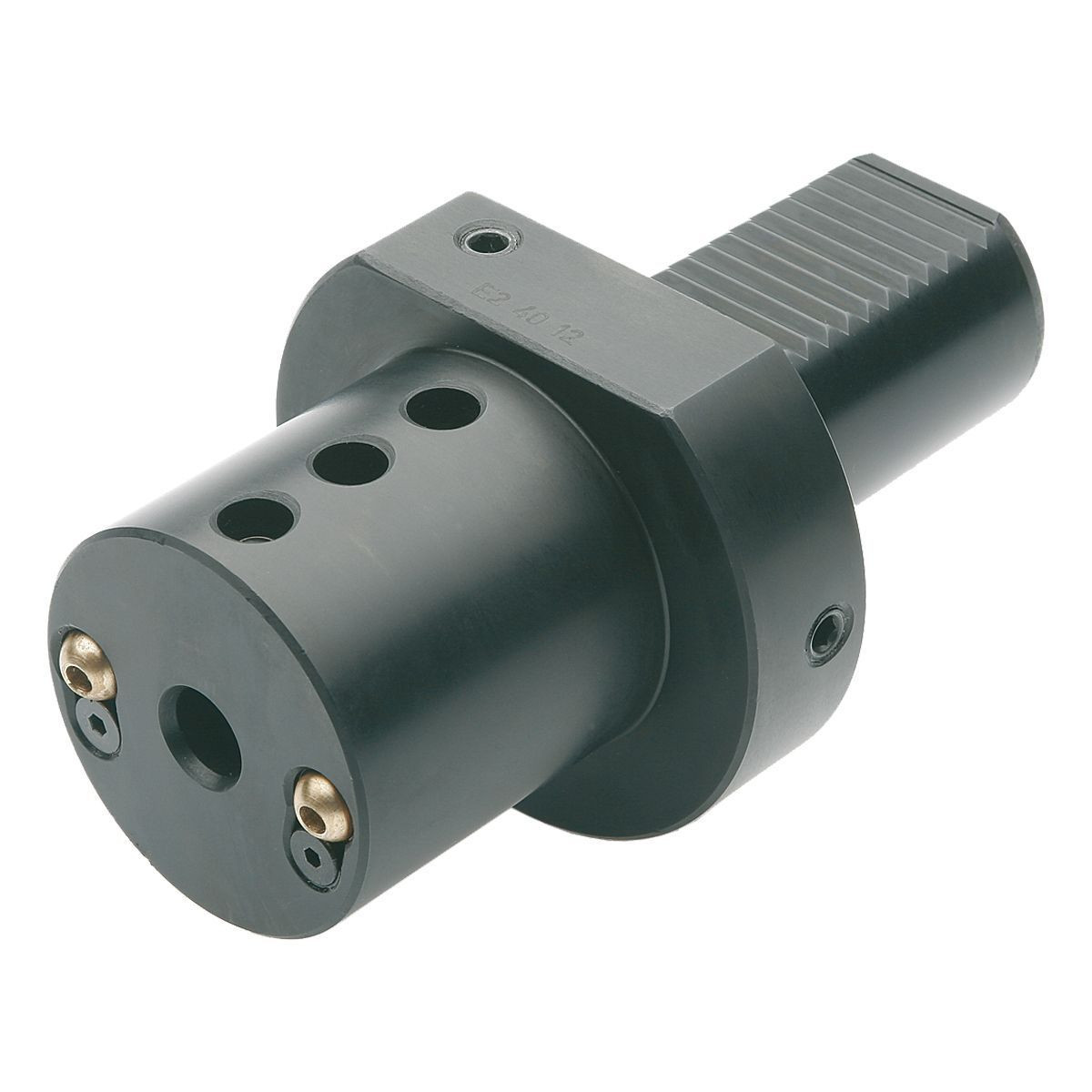

Bohrstangenhalter E2-25×25 DIN 69880 (ISO 10889)

CHF 73.70

Artikel-Nr.: 259.52.25 Kategorien 25, Bohrstangenhalter Form E2, DIN ISO 10889-1 (VDI), Kemmler

Beschreibung
Zusätzliche Informationen

Beschreibung

Verwendung: Für Innenbearbeitung mit Bohrstangen.

Sämtliche Aufnahmen werden aus geschmiedetem Stahl gefertigt Spezifisch, verzugsarm gehärtet Oberflächenhärte HRC 58~60 Härtetiefe 0,8mm~0,9mm Kegelwinkeltoleranz < AT 3 nach DIN 2080 Oberflächenrauhigkeit Ra < 0,4 µm Zugfestigkeit im Kern von min. 800 N/mm² nach DIN Alle Funktionsflächen feinbearbeitet D: 58 d1: 25 Norm: DIN ISO 10889-1 (VDI) Typ: E2 d2: 25 h2: 25 d4: 58 l2: – Abmessung: E2 – 25 × 25 l1: 60

Zusätzliche Informationen

Gewicht	1.1 kg
EAN	4250001029968
Lieferant	Kemmler
Gewicht	1.1
